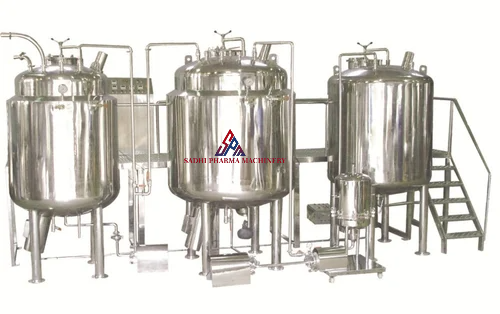

Automatic Liquid / Syrup Manufacturing Plant
Home / Automatic Liquid / Syrup Manufacturing Plant
SALIENT FEATURES
Extremely hygienic processing.
Least manual handling.
Atmospheric, Vacuum or Pressure Operation.
Capacity up to 10,000 Liter.
Vessel Inside Pressure (-1 /+2 Bar).
Heating Jacket Pressure (-1 /+6 bar).
Thermal Insulated.
Portable execution on request.
Integrated Cleaning in Place-CIP.
Variable Speed Agitation
Single or double mechanical seal.
Agitator can be top or bottom driven or magnetically driven.
Propeller type, Anchor type provided with High speed disperser or rotor-stator homogenizer.
Fully automatic Liquid Syrup Manufacturing Plant consisting of
Working Platform.
Sugar Charging / Transfer System.
Sugar Melting Vessel with mixing stirrer.
Basket Filter & Transfer Pump.
Syrup Manufacturing Vessel with stirrer.
Inline Homogenizer.
Zero Hold up Filter press.
Storage Tank with stirrer.
Interconnecting pipeline.
Transfer Pumps.
Integrated automatic control panel.
Turn Key Process Line
For production, filtration, transfer and storage solution.
Pre reparation vessels.
Inline homogenizer.
Inter Connecting Pipe.
Solid or sugar Charging System.
Working Platform.
Automation available, appropriate for the intended process function, including CIP and SIP
Controls of all function by PLC Controls with HMI Touch screen.
Level controls by means of capacitance probe or electronic load cells.
Digital indication and controls of all process parameters for Process time, agitator speed, temperature, pressure & level.
