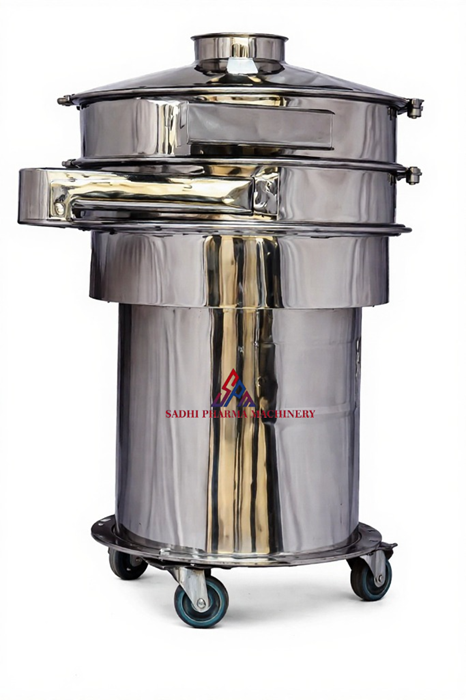

Vibro Sifter

Home / Vibro Sifter

The Vibrosifter with its Vibro-motor mounted vertically at the center of hopper is ideal for gentle separation of dry powders I granules by utilizing different sizes of screen. Quick and simple disassembly and reassembly coupled with easy accessibility to all exposed parts, corners and crevices, make the Gansons Sifter well-suited to cleaning procedures in use today. The resultant thorough cleaning and its validation, mitigates the risk of cross-contamination, which is a constant cause of concern during processing.
Vibratory Sifter meets the requirements of ‘Dust-free Sifting’ of the Pharmaceutical, Nutraceutical, Food, Chemical, Cosmetic and other allied industries. The complete vibrating assembly has a specially designed gyro motor that is fitted with top & bottom eccentric weights designed as per required centrifugal force. The sifter is designed for convenient usage & maintenance.

FEATURES

Contact parts in SS 316 ISS 316L can be provided as per user requirement.

Flame-proof motor can be supplied as an option.

Portable, compact and easy to handle and dismantle for cleaning.

Flame-proof motor can be supplied as an option.

Easy dismantling, cleaning & assembling through quick opening SS 316 clamps

Portable mounted on sturdy Castor Wheels

cGMP Model with contact parts in SS 316 & Non-Contact Parts in SS 304

Portable mounted on sturdy Castor Wheels

BENEFITS FOR YOU

Dust-free sifting.

Easy to handle.

Portable, compact and easy to handle and dismantle for cleaning.

Multiple mesh size available to suit your individual processing needs.

Design compliant with cGMP requirements

SP-VS Series Specification Table
Model Overall Dimension (mm) Motor (Hp) Approx Weight (kg)
L B H
SP-VS-12 400 400 1000 0.25 50
SP-VS-24 700 700 1000 0.25 80
SP-VS-30 850 850 1250 0.5 120
SP-VS-36 1000 1000 1600 0.5 150
SP-VS-48 1300 1300 1850 1 180
SP-VS-60 1600 1600 2000 1.5 220
SP-VS-72 1800 1800 2200 2 260
